 White Water Return System

Formax
White Water Return System

Catalog Number F-100

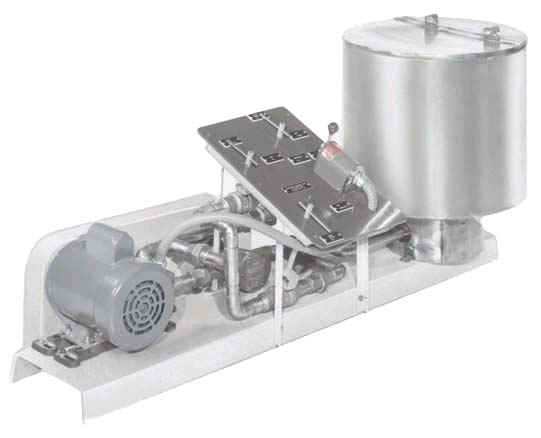

The FORMAX™ White Water Return System is used for pH control and to study the retention of fines and additives. It is compact and is easily installed underneath a laboratory bench. A separate control panel controls all sheet making functions, with multi-position switches and a reversible pump motor.

Features:

  • 316 stainless steel reservoir tank (15gallon/55 liter)
  • 316 Stainless Steel Ball Valves with pneumatic actuators
  • All plumbing 1" hard copper
  • All sheet making functions controlled with single control panel: White Water Recirculation, Deckle Fill, Drop Leg Fill, Drain & Vacuum
  • Compatible with all FORMAX™ and most other hand sheet making equipment.
  • Vacuum of 15 inHg can be applied to sheet mold to assist drainage.
  • Tank provided with hinged cover.
  • Motor- 3/4HP, 115/230V, 1725rpm
  • Dimensions- 57"l x 18"w x 22"h.
  • Weight- 125 lbs

Options:

  • Custom reservoir tanks
  • Reservoir heating jacket
  • Stainless Steel pump and plumbing
  • Separate reservoir tank provides more installation options

FORMAX™
REPAIR & REPLACEMENT PARTS LIST

F-100 WHITE WATER RETURN
F-IMPELLER Impeller
F-PUMP Pump
F-MTR SHEAVE Motor Pulley
F-PUMP SHEAVE Pump Pulley
F-MOTOR Pump Motor
F-GRIP BELT Belt
F-SWITCH-DRUM Pump Motor Switch
F-SP.TAPERBUSH Shaft Bushing (2) per unit
F-VALVES-SOL. Solenoid (3) per unit
